"AI Can Design Your PCB Now" Doesn't Hold Up Once the Board Gets Small Enough

Writer: Srihari Maddula
Srihari Maddula
9 minutes ago
4 min read

Srihari Maddula • Founder & Technical Lead, Eurth Techtronics Pvt Ltd  |

Category: Manufacturing Realities  |

Estimated Reading Time: 5 min


The pitch for AI-assisted PCB design tools is built almost entirely around boards of a certain size — enough real estate for the tool's training data to have seen comparable layouts, enough component spacing for its constraint-solving to have real room to work with. Most of the marketing demos reinforce this: a mid-sized development board, a reasonably generous four-layer stack, components with normal spacing. Push the same tools toward a small board — the kind where every square millimeter is fought over — and the pitch starts falling apart in specific, predictable ways.



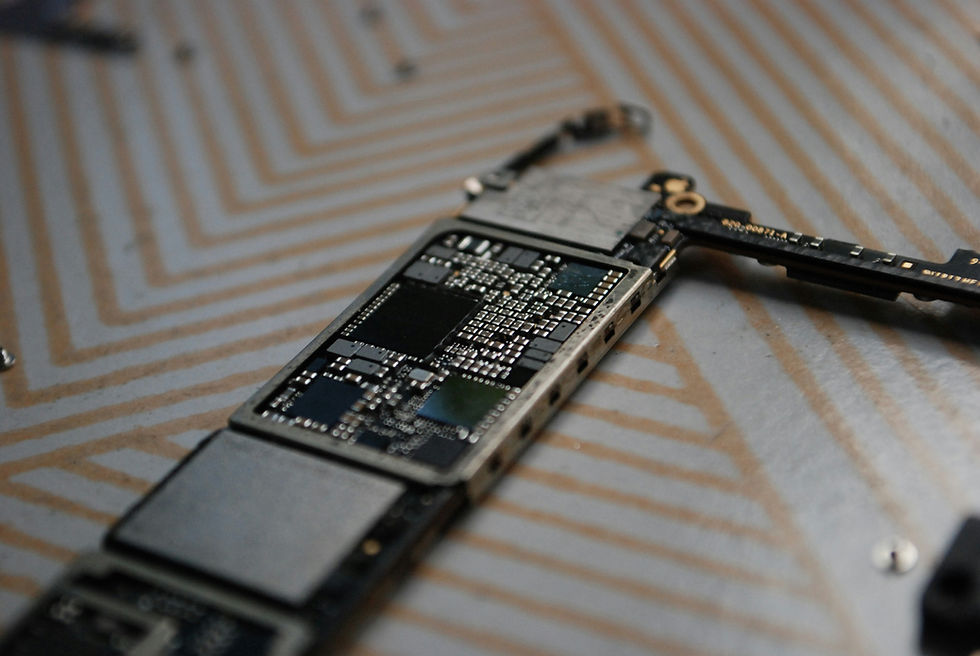

Why Small-Board Design Is a Different Problem, Not Just a Smaller One


A team designing very small boards routinely runs into a resourcing problem most PCB tooling doesn't account for: candidates interviewing for schematic and layout roles frequently look capable on paper and turn out only partially skilled once given a real small-form-factor design task, because small-board layout is a different skill from general PCB design, not a smaller version of the same skill. Component placement on a spacious board is a constraint-satisfaction problem with plenty of slack — there's usually a valid arrangement not too far from any reasonable starting point. On a small board, every placement decision competes directly with several others for the same limited space, and a tool (or a person) trained mostly on spacious boards has comparatively little experience with the specific discipline of resolving that competition well.


THE RULE:  Small-board layout isn't the same skill as general PCB layout, scaled down. It's a different discipline built around constraint density that a spacious-board design simply doesn't have.

Where the Tools Specifically Break Down


Evaluating commercial AI-PCB platforms like Flux.ai and similar services against actual small-board work surfaces two consistent problems. First, cost and token economics: these tools' pricing models are generally built around iterative, conversational design sessions, and a tight small-board layout needs far more iteration — more back-and-forth constraint adjustment — than a spacious board does, which means the same tool that's cost-effective for a general board becomes expensive and slow specifically for the hardest design work it's being asked to help with. Second, and more fundamental: the underlying training data and heuristics these tools rely on skew toward the much larger population of general-purpose, moderately-dense boards actually available for training, which means their placement and routing suggestions default toward patterns that don't translate well to a design where standard component spacing simply isn't available as an option.


This produces a specific, recognizable failure signature: the tool's suggestions look reasonable in isolation and don't actually resolve the board's real constraint — a placement suggestion that would be perfectly sensible on a board with 30% more available area, offered as though the extra area existed. A design decision that's reasonable in the abstract and wrong for the actual physical constraint is a harder failure to catch during review than an obviously broken suggestion, because it takes real domain expertise to recognize why a plausible-looking placement doesn't work for this specific board.


What Actually Helps at This Scale


Open-source, actively-developed tooling — code-first ECAD approaches specifically, where the design lives as reviewable, scriptable data rather than only a graphical layout — turns out to be a more promising direction for small-board work than the commercial conversational-AI platforms, not because the underlying AI capability is more advanced, but because a code-first design can be constrained and validated programmatically against the board's actual tight spacing rules, rather than relying on a general-purpose model's learned intuition about typical board layouts. A constraint defined explicitly in code ("this component's keepout zone cannot overlap this other component's keepout zone, full stop") is enforceable in a way a language model's soft suggestion isn't.

This points toward a different adoption strategy for a team doing predominantly small-board work: rather than adopting a general-purpose AI-PCB platform built for the median board size in its training data, building or adapting a narrower, rules-based tool specifically encoding the team's own small-board design constraints is more likely to deliver real value — a smaller, more specialized tool that's actually correct for the specific problem, rather than a broader tool that's plausible-sounding and wrong at the exact scale where correctness matters most.


THE RULE:  A narrower tool that's actually correct for your specific board class beats a broader tool that's plausible-sounding and subtly wrong at exactly the scale where the mistake costs the most.

The Corrected Expectation


"AI can design your PCB now" is true enough for the board sizes and densities most of these tools were built and trained around — and it becomes a much weaker claim, fast, as board size shrinks toward the constrained end of the spectrum. A team evaluating AI-assisted PCB tooling for small-form-factor work should test explicitly against their own hardest, most space-constrained real board — not a vendor's demo board, and not even their own median-sized board — because that's the specific case where the gap between the pitch and the reality shows up first, and where a generic evaluation would miss it entirely.



What This Means for Hiring, Not Just Tooling


The tooling gap described above compounds a hiring reality worth naming directly: candidates for PCB and schematic design roles who look capable against a general portfolio frequently turn out only partially able to handle the specific discipline small-board layout demands, because most design education and most portfolio-building work happens on boards spacious enough that the hardest constraint-density problems never come up. This means the evaluation gap isn't limited to AI tooling — it applies just as directly to evaluating a human candidate, and the fix is the same in both cases: test against the team's own hardest, most constrained real board, not a general design exercise, because that's the only test that reveals whether the candidate (or the tool) has the specific skill the role actually needs.


A practical hiring adjustment that follows from this: build a short, real small-board layout exercise — not a toy problem, an actual constrained design pulled from the team's own work, sanitized of anything confidential — into the interview process itself, rather than relying on a portfolio review or a general take-home exercise that a spacious-board specialist could complete convincingly without ever revealing the gap.
